Model FD70M222W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill.

The FD70M222W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

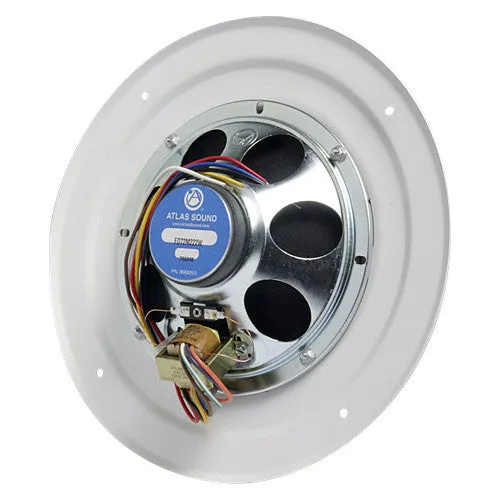

Speaker / transformer is factory installed on a M222W baffle featuring a contoured trim ring. Construction is of one-piece .030 aluminum. Finish is textured white.

Features:

• Aluminum contoured baffle
• Attractive white finish
• Easy to order speaker/transformer/grill assembly
• Mounts to standard tile bridges, enclosures, and plaster rings
• Suited for any commercial paging or BGM application

• Depth 2 5/8" (6.6675 cm)
• Diameter 8" (20.32 cm)
• Shipping Weight 3.17 lbs (1.44 kgs)
• Frequency Response 50 Hz - 18 Khz, ?5dB
• Power Taps 25/70.7V
• Speaker Type Treated Paper
• Dispersion 105°
• Sensitivity 97dB Peak, 94dB Average
