Sennheiser XSW 1 CI1-A UHF Instrument Set

The XSW 1 CI1-A UHF Instrument Set from Sennheiser is an easy to use all-in-one wireless system for guitarists and bassists. It can be used for live sound applications to free the performer from instrument cables, which connect to a power amp or mixer.

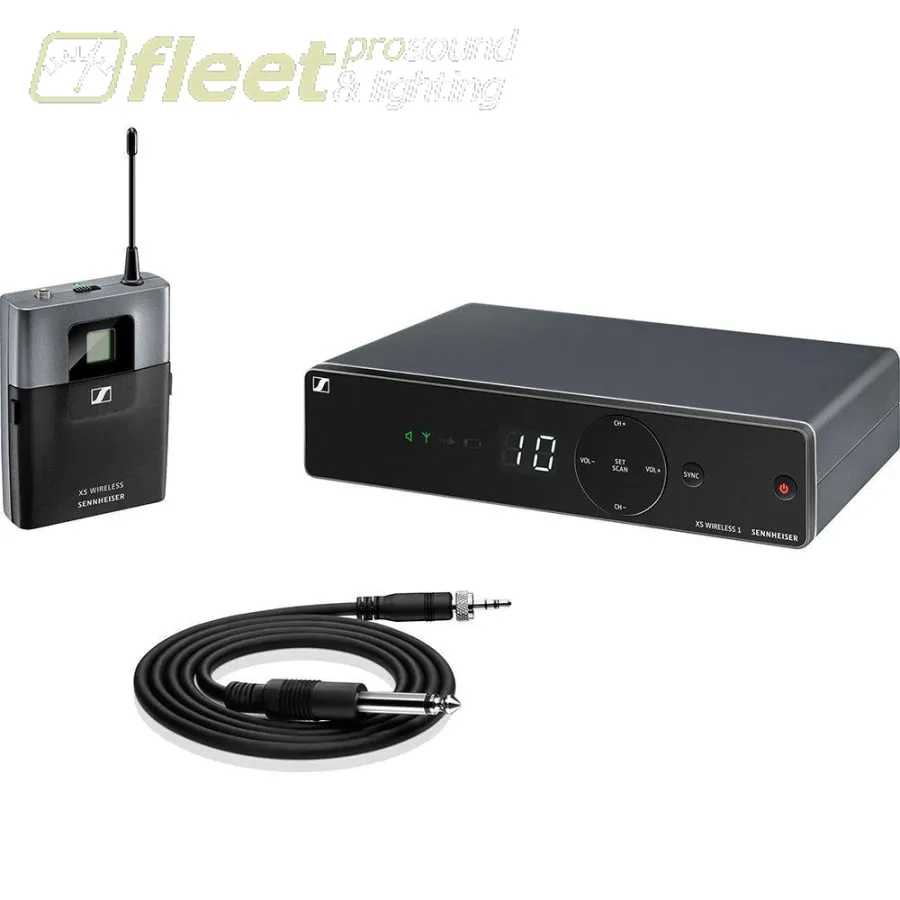

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and a 1/4" instrument cable. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

Selectable UHF frequencies within a large bandwidth

Up to 10 compatible channels

Diversity reception

Features:

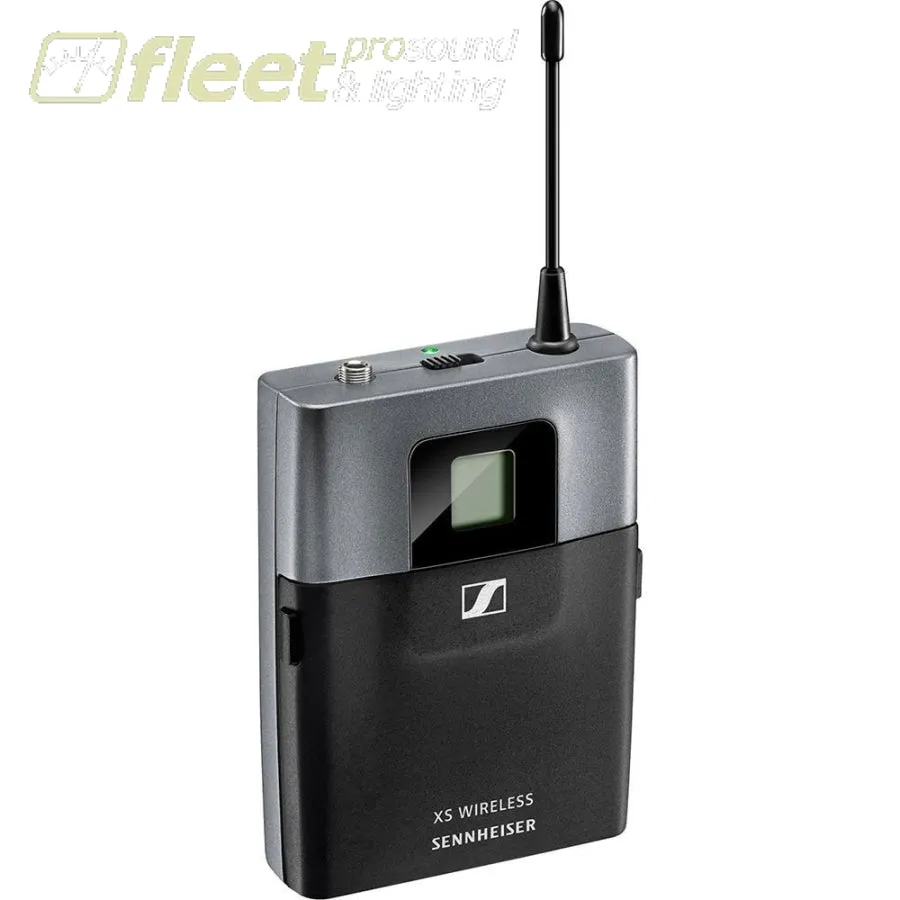

SK-XSW Bodypack Transmitter

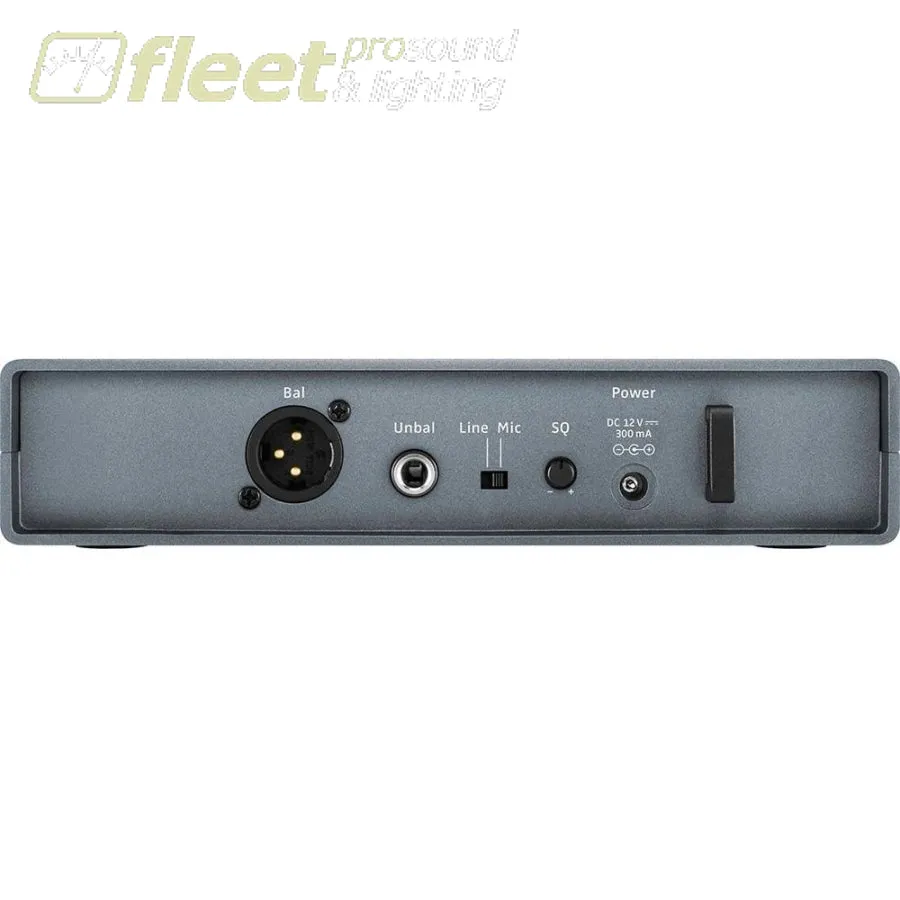

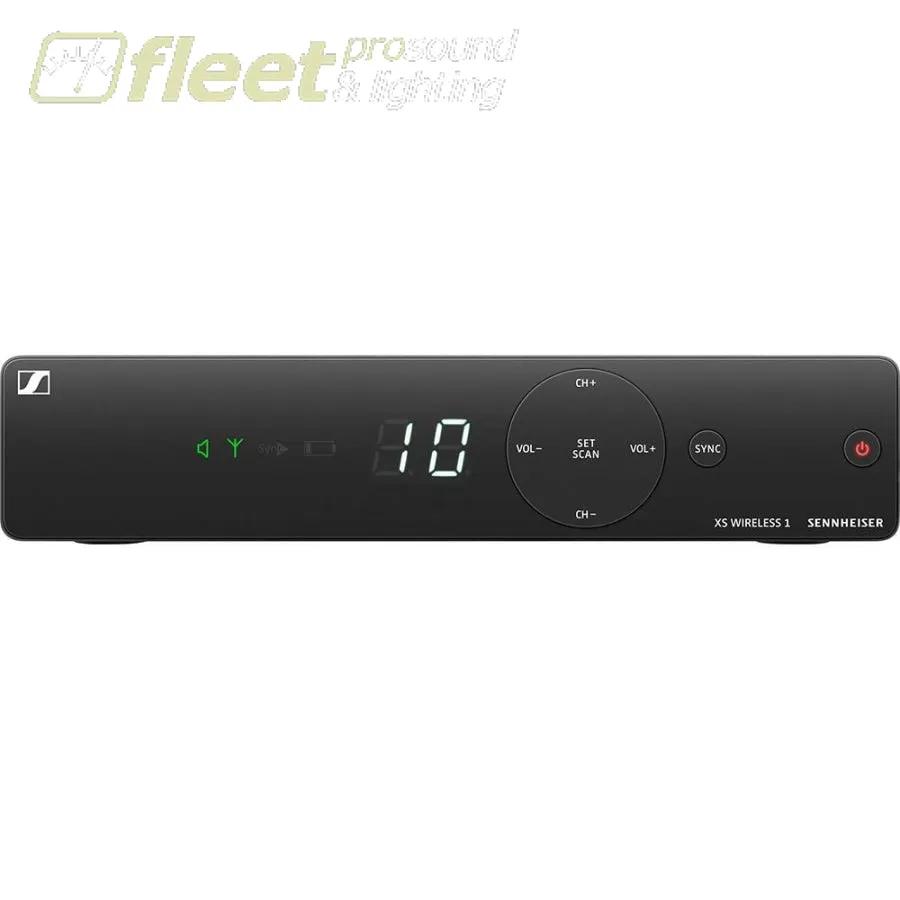

EM-XSW 1 UHF Receiver

Antenna-Switching Diversity Reception

Automatic Frequency Management

Selectable UHF Frequencies

Up to 10 Compatible Channels

Integrated Antennas

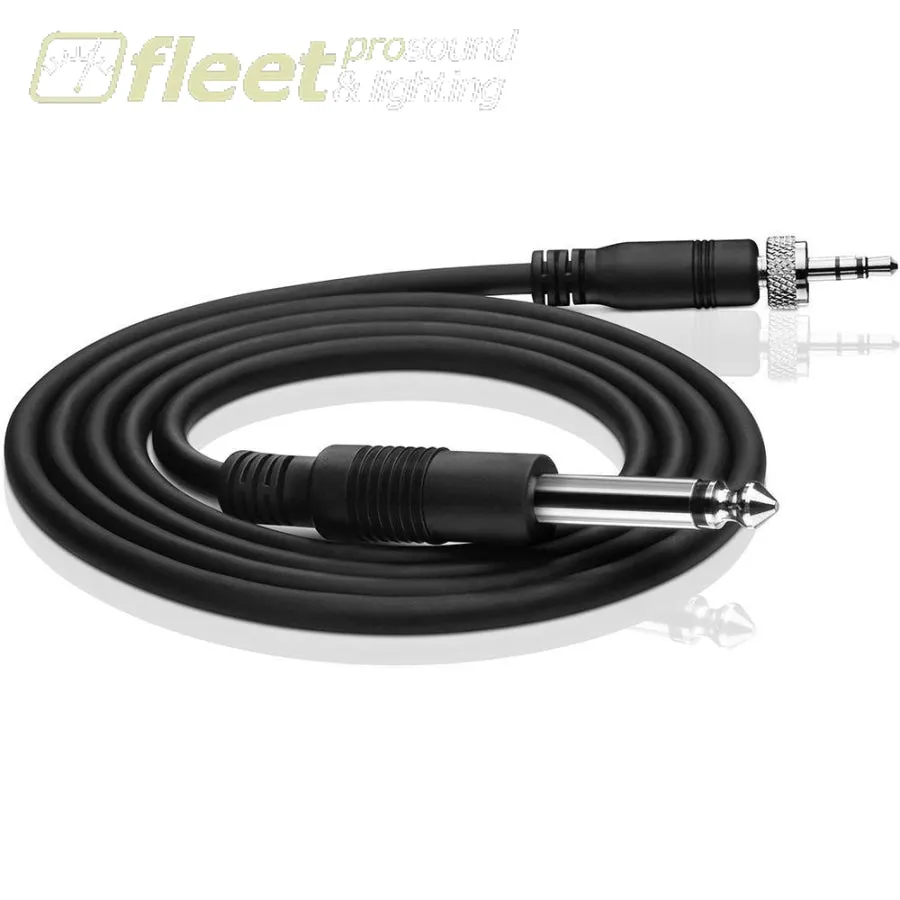

Includes 1/8" to 1/4" Instrument Cable

Includes NT 12-5 CW Power Supply

Includes 2 x AA Batteries

Specifications:

Modulation: Wideband FM

Frequency Range: A: 548 to 572 MHz

Switching Bandwidth: Up to 24 MHz

Signal to Noise Ratio: ≥ 103 dBA

Total Harmonic Distortion: ≤ 0.9%

Temperature Range: Operation: 32 to 104°F (0 to 40°C)

Storage: -4 to 158°F (-20 to 70°C)

Transmitter Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)

Package Weight: 2.9 lb

Box Dimensions (LxWxH): 13.7 x 13.4 x 3.4"
